Based on "Bauschinger effect", metal blanks were repeatedly twisted to make metal fiber gradually consistent, eliminate internal stress, restore and improve the flatness of work-pieces. Suitable for construction machinery, metallurgy, vehicles, metal structures, ships, pressure vessels, chemical machinery and other manufacturing industries as well as metal material warehousing, metal plate distribution etc. industry. It not only can be used separately but also used in metal plate formingline, coilfeeding line etc.

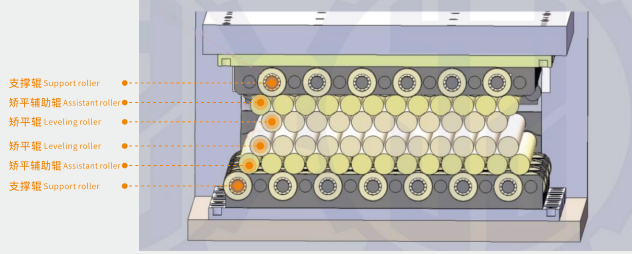

It's concentric of the bearings and support roller so as to guaranteed very precise and consistent running of the support rollers and increase leveling roller's rigidity, meanwhile, it's designed more wider of the support rollers than competitors, then it can well improve the scratch on material's surface caused by support rollers.

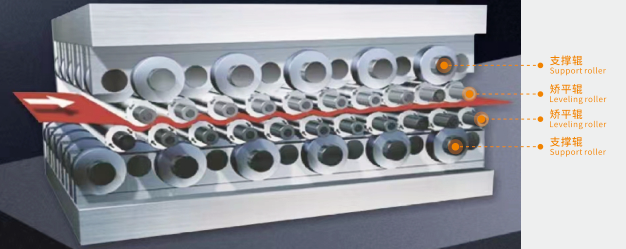

The deflection force generated during the operation of the leveling roller and assistant roller are borne by the support rollers. Multiple sets of support rollers work together to greatly improve the stress state of the leveling roller and facilitate the conduction of leveling, pressure.

Leveling roller material is smelted and forged high-grade alloy steel Gcr15. Roller body hardness is HRC28-32" after heat treatment, hardened layer depth is:2-4mm. The leveling surface is chromium plated with a coating, depth of 0.1-0.2ram, surface smoothness reaches 0.8-0.2, surface hardness HRC60-64,the mechanical properties of the leveling roller after processing have reached tensile strength≤900N/mm, yield limit ≤800N/mm, elongation coefficient ≥15%, Impact resistance value≥70N-M/cm.

When the support roller bears the deflection force, it is transmitted to the leveling roller through the assistant roller. The assistant roller has the same length as the leveling roller, but its diameter is slightly smaller, so that the plate becomes flat during the by uneven distribution of direct contact between the support roller and the leveling rollers.

leveling process. The force is evenly distributed along the entire plate width, thus avoiding the indentation phenomenon caused
